THOMAS DUDLEY VANTAGE ELECTROFLO SINGLE/DUAL FLUSH CONTROL BOX & SENSOR ONLY (chrome bezel surround not included), 324468
Brand: THOMAS DUDLEY by:- TYDE
Product Code: 324468
Availability: In Stock
Estimated Delivery: 1-3 Working Days
Product Code: 324468
Availability: In Stock
Estimated Delivery: 1-3 Working Days
Price:
£286.62
£224.96
(£187.47 ex Vat)
THOMAS DUDLEY VANTAGE ELECTROFLO SINGLE/DUAL FLUSH CONTROL BOX & SENSOR ONLY (chrome bezel surround not included), 324468
ELECTROFLO® WC Touch free IR WC flush sensor
- Supplied as a single flush which is easily converted to dual flush from inside the contol box.
- Blue Light for Full Flush.
- Green Light for partial Flush (dual flush).
- Infra-Red Sensor Controlled Flush.
- To suit the Vantage & Vantage Classic (old style) Cisterns.
ApplicationsTouch free infrared WC flushing for use with Dudley
Vantage and Miniflo concealed cisterns.
Ideal for use in bathroom furniture and behind tiles,
partitioning or IPS panelling within domestic or
commercial environments.
Water Saving
Dual flush functionality can deliver 6/4, 5/3 or 4/2.6 litre flush volumes.
Features
- Discreet Ø40mm IR sensor available in chrome and matt black finishes or machined 304 stainless steel - optional extras (not included)
- Sensor detects a plurality of hand gestures; wave for full flush, hold hand in front of sensor for reduced flush
- LED flush indication
- Post flush sensor delay allows the cistern to refill before another flush can be delivered
- Control box can be integrally mounted with the sensor at the rear of the panel or independently mounted onto a suitable flat surface

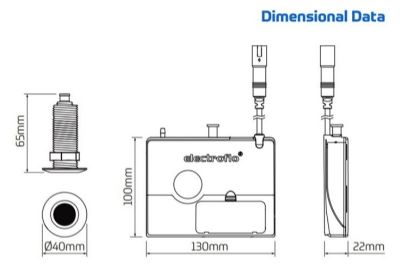

- Mains or battery options available. 65mm 100mm Ø40mm 130mm 22mm
Technical Data
- Operating Voltage: 6V DC
- Mains Supply: 230V AC 50Hz
- Battery Supply: 4 x 1.5V AA
- Sensor Cable Length: 400mm
- Sensor Activation Range: Up to 50mm
- Ingress Protection: IP44
- Max. Wall Thickness: Up to 45mm (170mm with separate extension kit)
